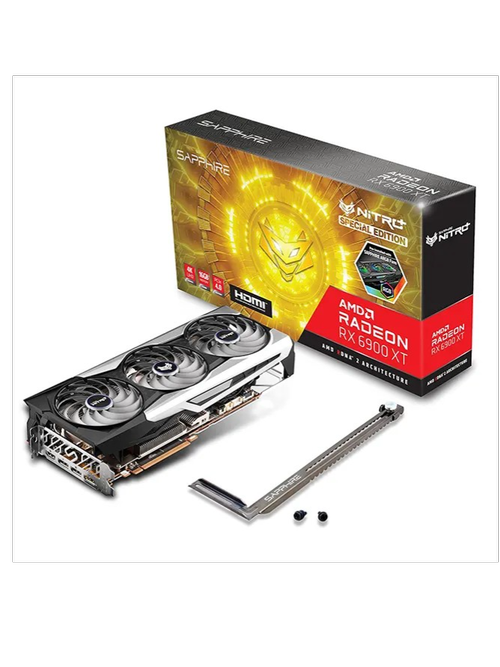

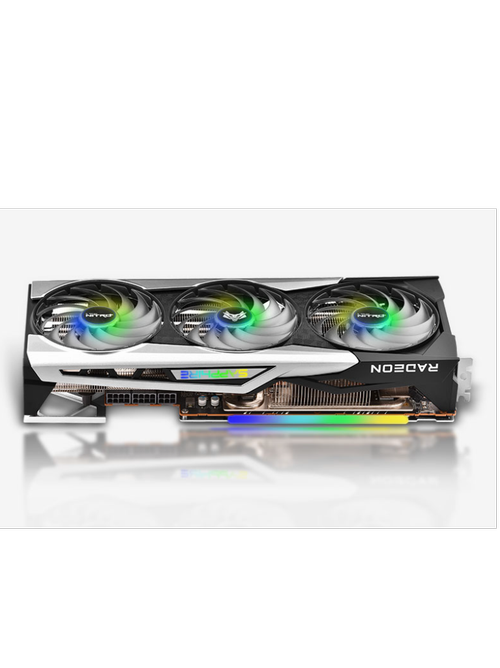

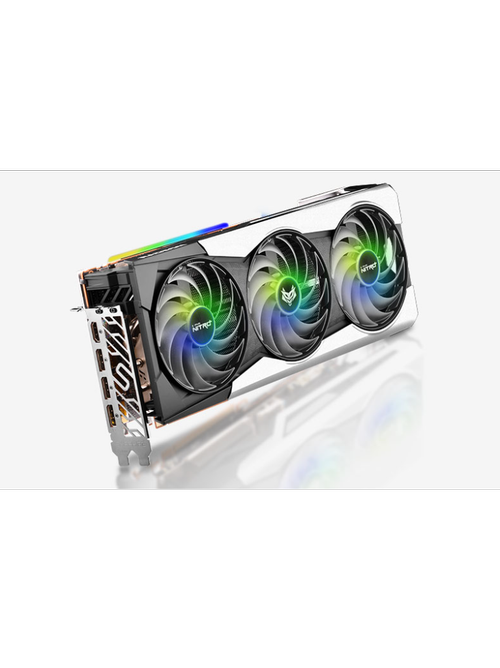

کارت گرافیک SAPPHIRE NITRO+ AMD Radeon RX 6900 XT 16GB GDDR6 Special Edition

The NITRO+ AMD Radeon™ RX 6900 XT SE delivers powerhouse 4K gaming performance with vivid visuals for an elevated experience. The all-new innovative Wave Fin Design working in tandem with our V-Shape Fin Design for GPU Cooling reduces wind friction and centralizes airflow for optimal heat dissipation and a virtually silent system. Cutting edge Memory & VRM Cooling with Heat-Pipes and next gen K6.5 Memory Pad ensures you can push your performance to new limits while keeping the NITRO+ AMD Radeon™ RX 6900 XT SE components icy cool. The brand new Hybrid Fan Design combines the tranquility and strong air pressure features that exhibit ultimate levels of downward air pressure through the fan while keeping fan noise low. Incredible ARGB Lighting across the graphics card using our SAPPHIRE TriXX software fused with beautiful aesthetic styling will ensure the NITRO+ AMD Radeon™ RX 6900 XT SE is a stunning addition to every enthusiast gamer’s PC. NITRO Charge your PC with the NITRO+ AMD Radeon™ RX 6900 XT SE and elevate your gaming experience to the next level!

THE ULTIMATE GAME CHANGER

Powerhouse Performance for 4K Gaming

Every game.

Every frame.

Software BIOS Switch

Switch from performance mode to silent mode or back using our TriXX software for a quick and easy switch between your dual BIOS modes.

SAPPHIRE NITRO+ Graphics Cards

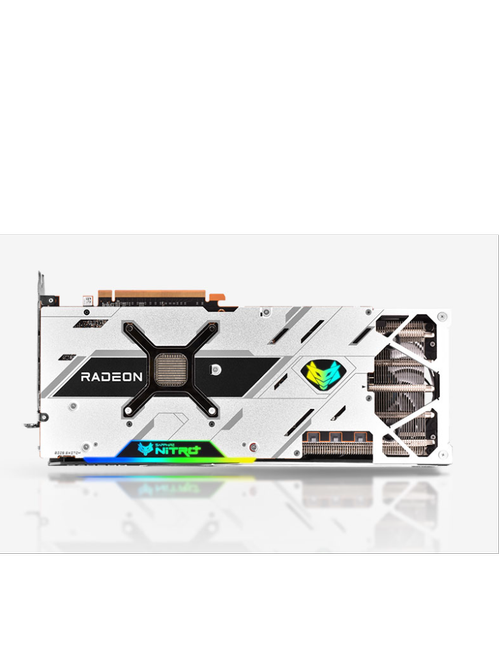

Backplate

Provides rigidity and helps cool your card by increasing heat dissipation.

Engineered

ARGB

Personalize the look of your NITRO + card with its built-in ARGB and ARGB fans.

Outputs

Choose from HDMI and DP slots for a maximum of 4 outputs

Cooling

Innovative cooling technologies to ensure optimal performance and airflow.

WAVE Fin Design & V-Shape Fin Design for GPU cooling

The WAVE Fin Design reduces friction when the wind goes into the fin module resulting in a reduction of the wind cut noise.

The V-shape fin design on top of the GPU accelerates and centralizes the air flow around the GPU to dissipate heat efficiently.

Hybrid Fan Blade

The new hybrid fan design combines the quietness of a traditional axial fan design and strong air pressure of a blower fan design to generate an improvement in the downward air pressure through the fan while keeping the fan noise low.

Integrated Cooling Module & K6.5 Memory Pad

The combined Memory & VRM cooling module cools the memory, MOSFET, and the chokes. Two heat pipes are added underneath the module to dissipate the heat from the components with better efficiency.

When compared to the previous K5, the K6.5 Memory Pad has a nearly 38% better thermal conductivity between the components and the cooler.

TRI-X COOLING TECHNOLOGY

Boost Clock: Up to 2365 MHz

Game Clock: Up to 2135 MHz

An innovative mixture of Robust VRM Cooling and independent memory thermal modules work in tandem to remove heat efficiently and effectively across all sections

Tunneled fins increase convection airflow and ensure wind continuously flows through the cooling and fan system

Heat is dissipated by a trio of large 100mm efficient fans running anticlockwise to maximize airflow.

AMD RDNA™ 2

RADEON

RADEON Super Resolution

Learn More

Download the Latest TriXX

Specifications

• #SKU#: 11308-03-20G SAPPHIRE NITRO+ AMD Radeon™ RX 6900 XT SE Gaming Graphics Card with 16GB GDDR6, AMD RDNA™ 2
• #SKU#: 11308-07-20G SAPPHIRE NITRO+ AMD Radeon™ RX 6900 XT SE

GPU

AMD Radeon™ RX 6900 XT Graphics Card

7nm GPU

AMD RDNA™ 2 Architecture

Engine Clock

• Boost Clock: Up to 2365 MHz
• Game Clock: Up to 2135 MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

5120

Infinity Cache

128MB

Ray Accelerators

80

Memory Size/Bus

16GB GDDR6

Memory Clock

16 Gbps Effective

Displays

Maximum 4 Displays

Resolution

• HDMI™: 7680×4320
• DisplayPort1.4: 7680×4320

Interface

PCI-Express 4.0 x16

Output

• 1x HDMI
• 3x DisplayPort

BIOS Support

• Dual UEFI

Game Index

4K

Sapphire Features

• Dual BIOS
• Max Boost
• TriXX Software Switch
• Premium Digital Power Design
• Fuse Protection
• Tri-X Cooling Technology
• Intelligent Fan Control
• Precision Fan Control
• Backplate with ARGB
• ARGB Fans
• Two-Ball Bearing Fans
• Hybrid Fan Blade
• Wave Fin Design
• V Shape Fin Design for GPU Cooling
• Integrated Cooling Module
• K6.5 Memory Pad
• TriXX Supported
• Fan Check
• Fan Quick Connect
• TriXX Boost
• NITRO Glow
• External RGB LED MB Synchronization

AMD Features

• AMD RDNA™ 2 Gaming Architecture
• DirectX® 12 Ultimate
• Hardware Raytracing
• 7nm GPU
• GDDR6 Memory
• PCI® Express 4.0 Support
• AMD FreeSync™ Technology
• DisplayPort™ 1.4 with DSC
• HDMI™
• Video Streaming up to 8K
• Radeon™ VR Ready Premium
• AMD FidelityFX
• Radeon™ Image Sharpening
• Radeon™ Anti-Lag
• Radeon™ Software
• Game Driver Optimizations
• High Performance 4K Gaming

Cooler Type

3 Fans

Form Factor

2.7 slot, ATX

Dimension: 320(L)X 134.85(W)X 58.4 (H)mm

Power Consumption

• 363W

OS

Linux®, Windows® 7*, Windows® 10, and Windows 11. 64-bit  operating system required

*Does not support all features including but not limited to Hardware Raytracing

System Requirement

• Minimum 850 Watt Power Supply
• 2 x 8-pin + 1 x 6-pin Power Connector.
• PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
• Specifications provided here are for guidance only. Please check with your regional distributor or dealer for latest specifications.
• Colors of PCB or other components may differ from those illustrated.
• SAPPHIRE reserves the right to update or revise specifications without prior notice.
• All trademarks and logos are acknowledged as the property of their respective holders.

*The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
